Efix Series

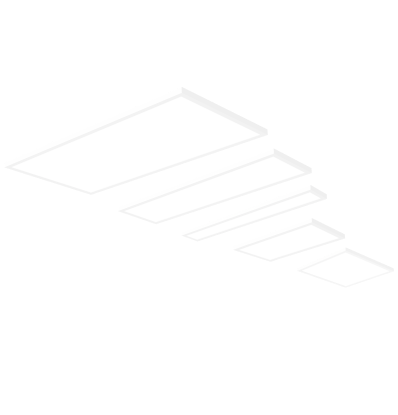

5CCT & 3 WATTAGE Surface Mount Panel Light
characteristic

- Key Features:

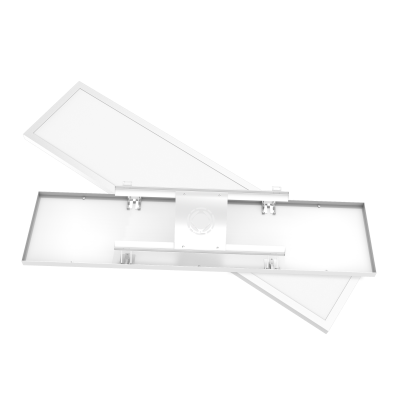

- Easy surface mounting design with modern outlook.

- 5CCT & 3Wattage is available for all sizes.

- Can fit for a variety of decorative styles.

- Dual level dimmable driver, AC100-277V, Triac dimmable at 120v, 0-10V DIM at 277V.


BUY IT NOW
Need more information?
For more information on this product, please contact us on +86-755 23170715 or email us on
Product Advantages
5CCT
3 Power
0-10V DIM
Triac Dimmable
AC100-277
5 Years Warranty
Parameter Display
6"*4'

  • Size(in)

    6"*4'

  • Size(mm)

    150*1213mm

  • Watt

    20/25/30W

  • Lumen

    3600

  • CRI

    >80

  • 5 CCT

    2700K/3000K/3500K/4000K/6500K

  • Input Voltage

    AC100-277V

  • Dimmable

    Triac@120V 0-10V DIM@277V

  • Finish

    White

2'*2'

  • Size(in)

    2'*2'

  • Size(mm)

    603*603mm

  • Watt

    20/25/30W

  • Lumen

    4000

  • CRI

    >80

  • 5 CCT

    2700K/3000K/3500K/4000K/6500K

  • Input Voltage

    AC100-277V

  • Dimmable

    Triac@120V
    0-10V DIM@277V



  • Finish

    White

1'*2'

  • Size(in)

    1'*2'

  • Size(mm)

    300*600mm

  • Watt

    22W

  • Lumen

    1980

  • CRI

    >80

  • 5 CCT

    2700K/3000K/3500K/4000K/6500K

  • Input Voltage

    AC100-277V

  • Dimmable

    Triac@120V
    0-10V DIM@277V



  • Finish

    White

1'*4'

  • Size(in)

    1'*4'

  • Size(mm)

    300*1213mm

  • Watt

    20/30/40W

  • Lumen

    4400

  • CRI

    >80

  • 5 CCT

    2700K/3000K/3500K/4000K/6500K

  • Input Voltage

    AC100-277V

  • Dimmable

    Triac@120V
    0-10V DIM@277V



  • Finish

    White

2'*4'

  • Size(in)

    2'*4'

  • Size(mm)

    603*1213mm

  • Watt

    20/30/40W

  • Lumen

    4400

  • CRI

    >80

  • 5 CCT

    2700K/3000K/3500K/4000K/6500K

  • Input Voltage

    AC100-277V

  • Dimmable

    Triac@120V
    0-10V DIM@277V



  • Finish

    White
